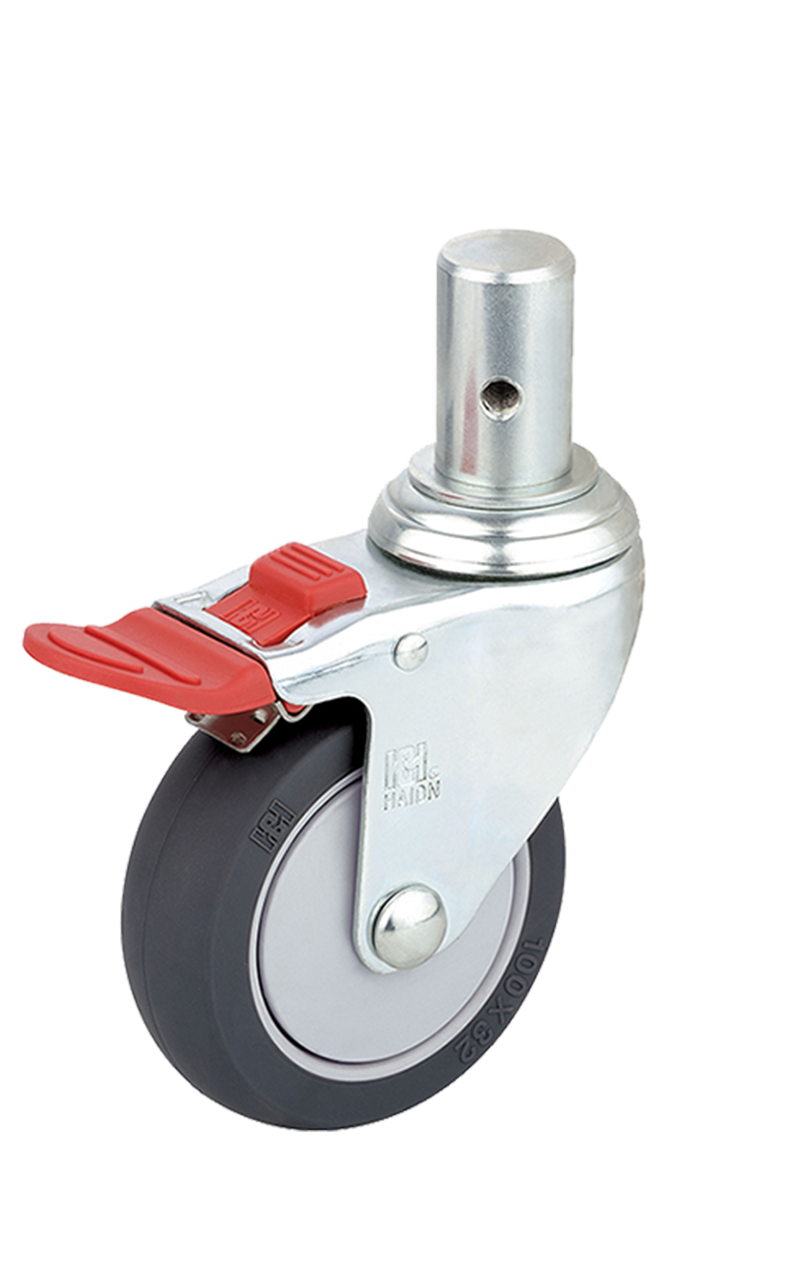

Home | Medical caster | Stretcher & institutional caster | H35-6S100TPB-N
Wheel size
-
75 mm( 3 inch)
TPR (Thermoplastic rubber)
-
100 mm( 4 inch)
TPR (Thermoplastic rubber)
-
125 mm( 5 inch)
TPR (Thermoplastic rubber)
-
150 mm( 6 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)5000+
-
Dynamic load
(kg/pc)100
-
Static load
(kg/pc)200
Specification Sheet
Compliance
Compliance |
EN12530 & RoHs |
Specification
Fitting |
28x45 mm |
Total height |
135 mm |
Offset |
41 mm |
Dynamic load |
100 kg/pc |
Static load |
200 kg/pc |
Wheel
Wheel diameter |
100 mm |
Wheel width |
32 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Total lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
Stainless steel |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
Zinc |

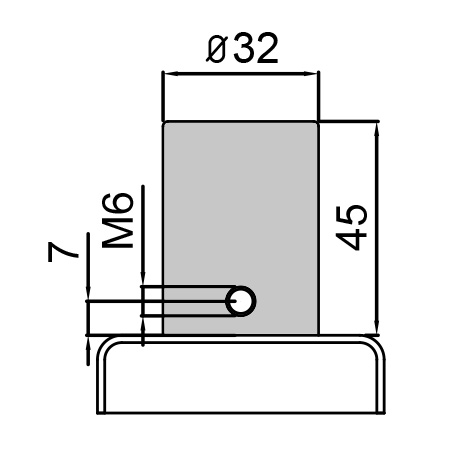

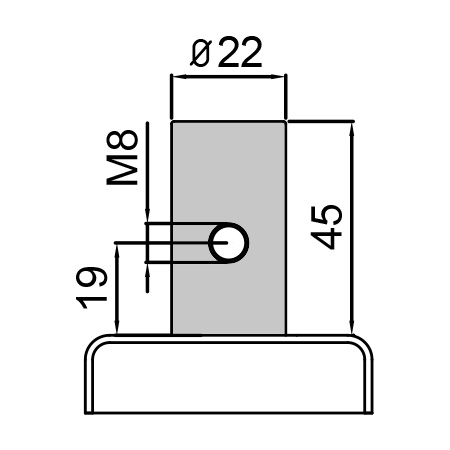

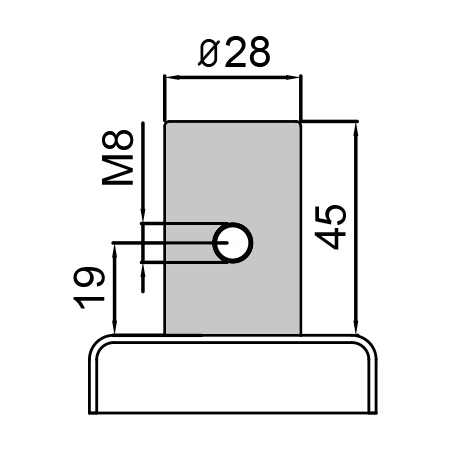

Fitting type

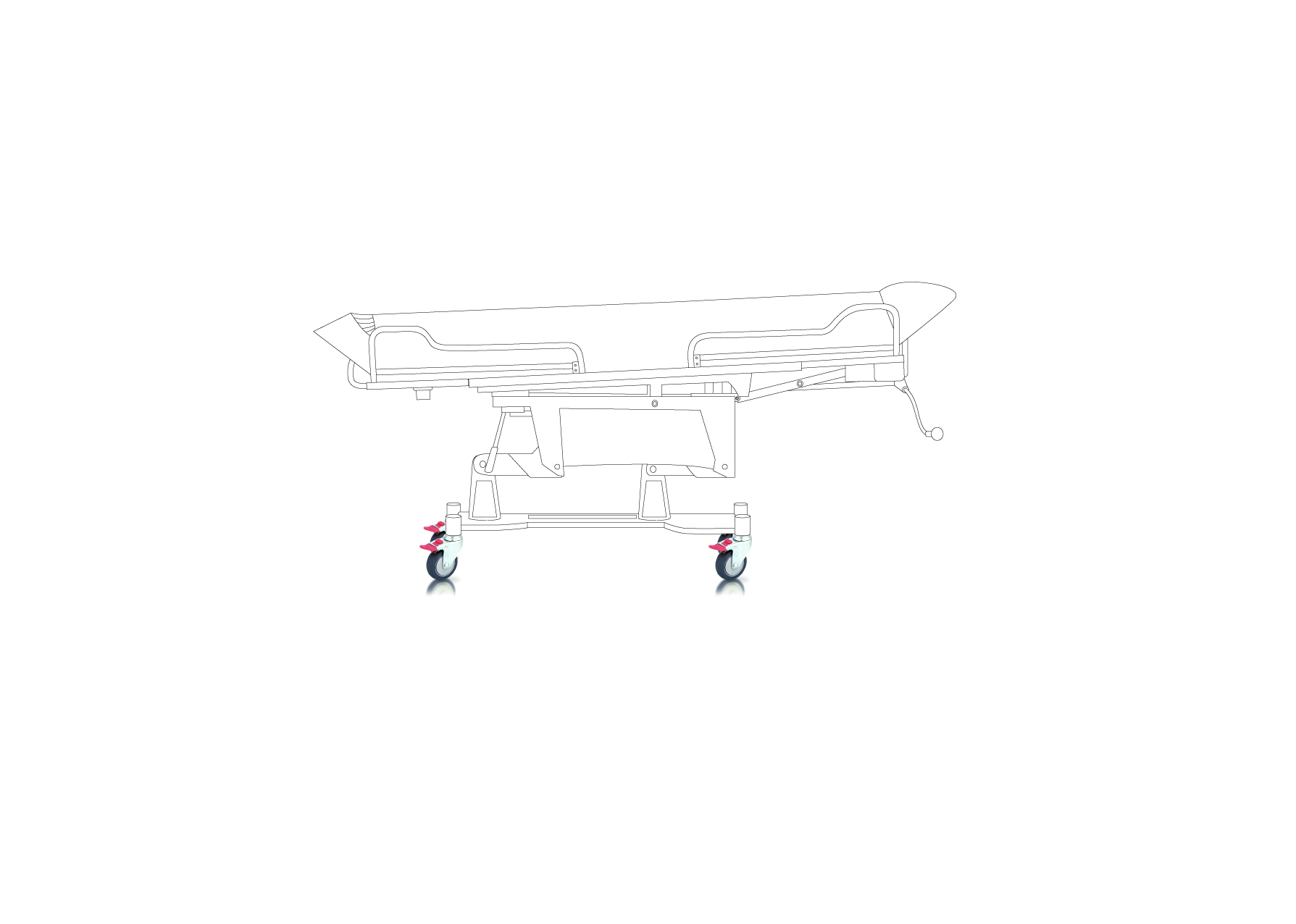

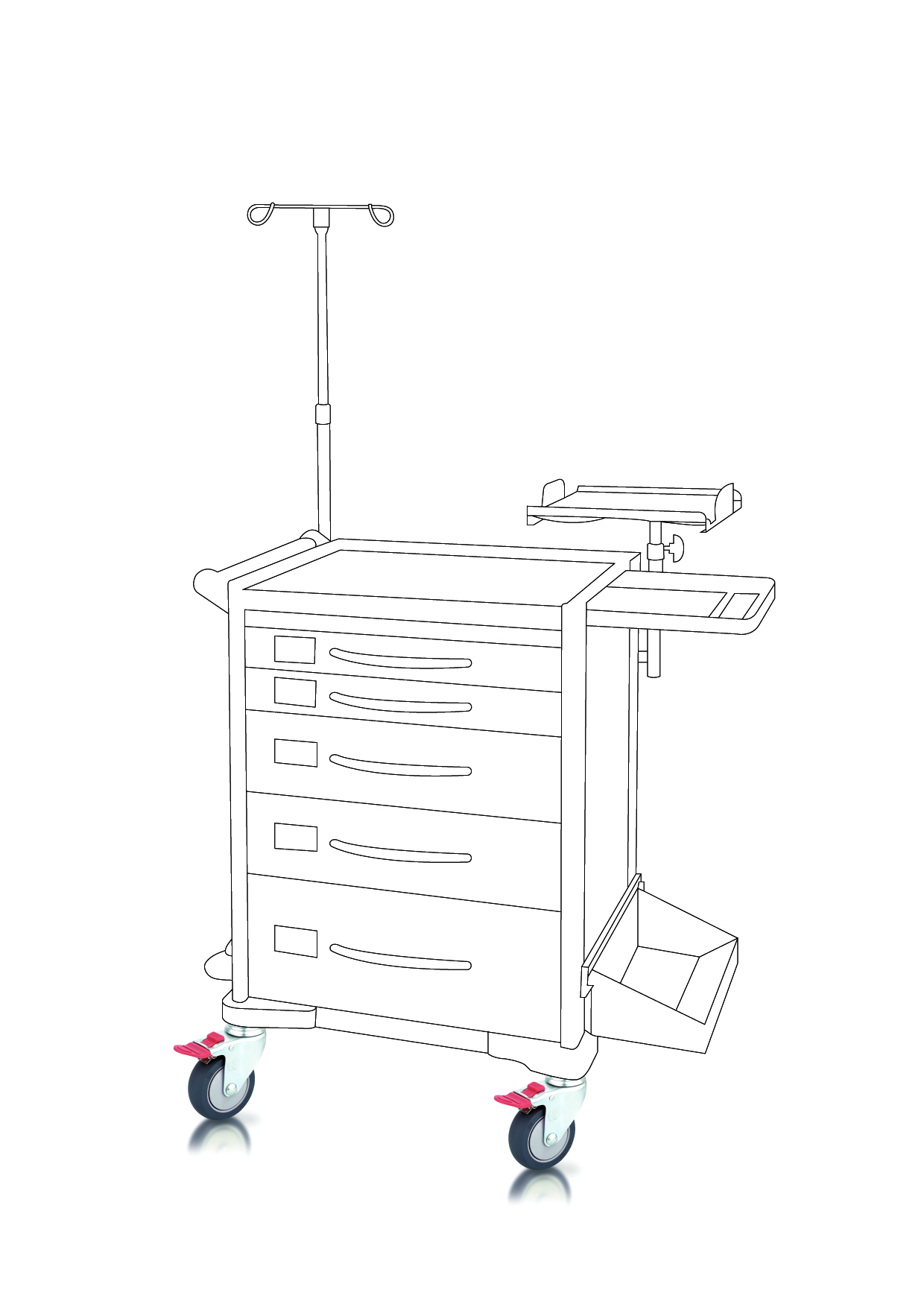

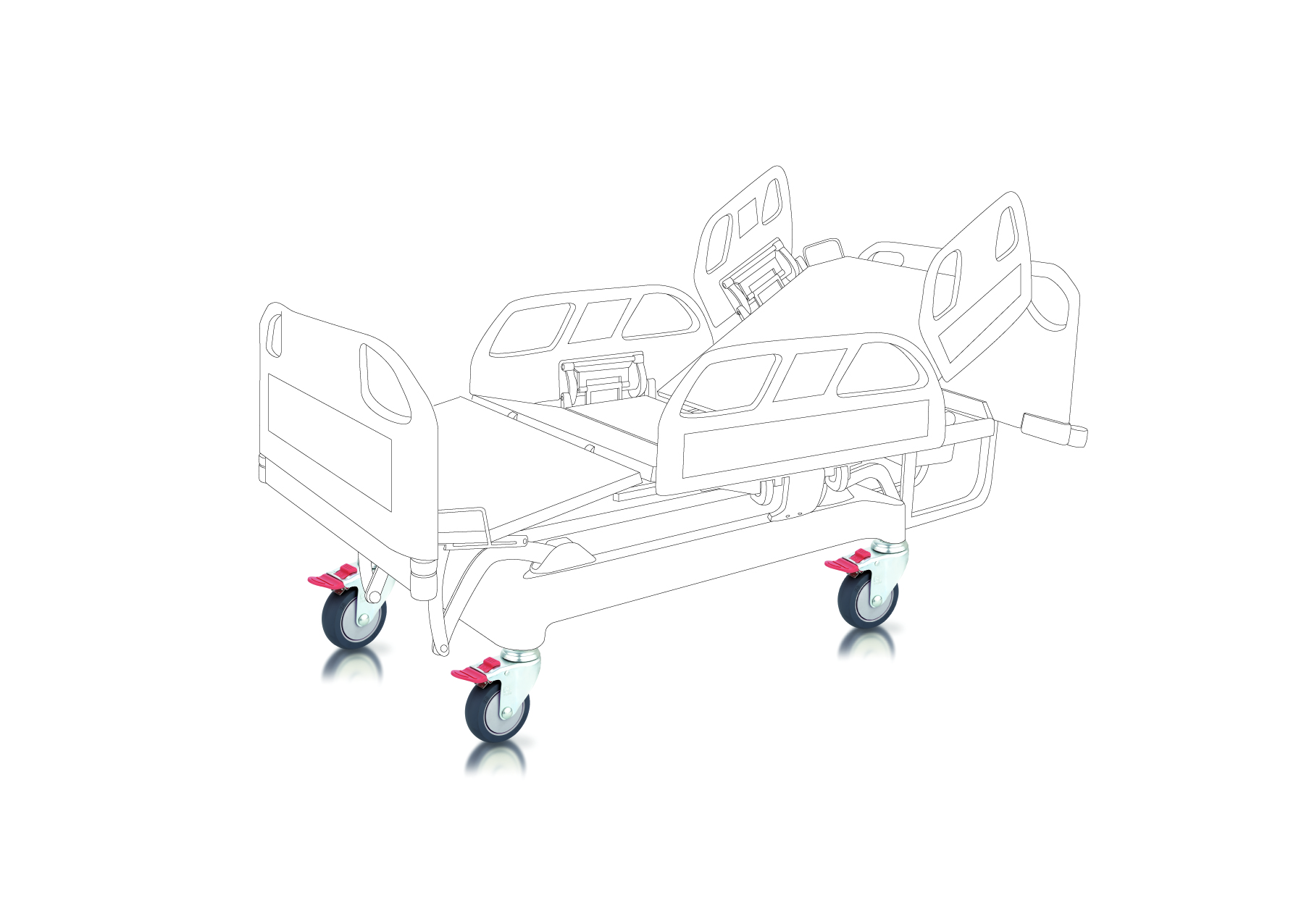

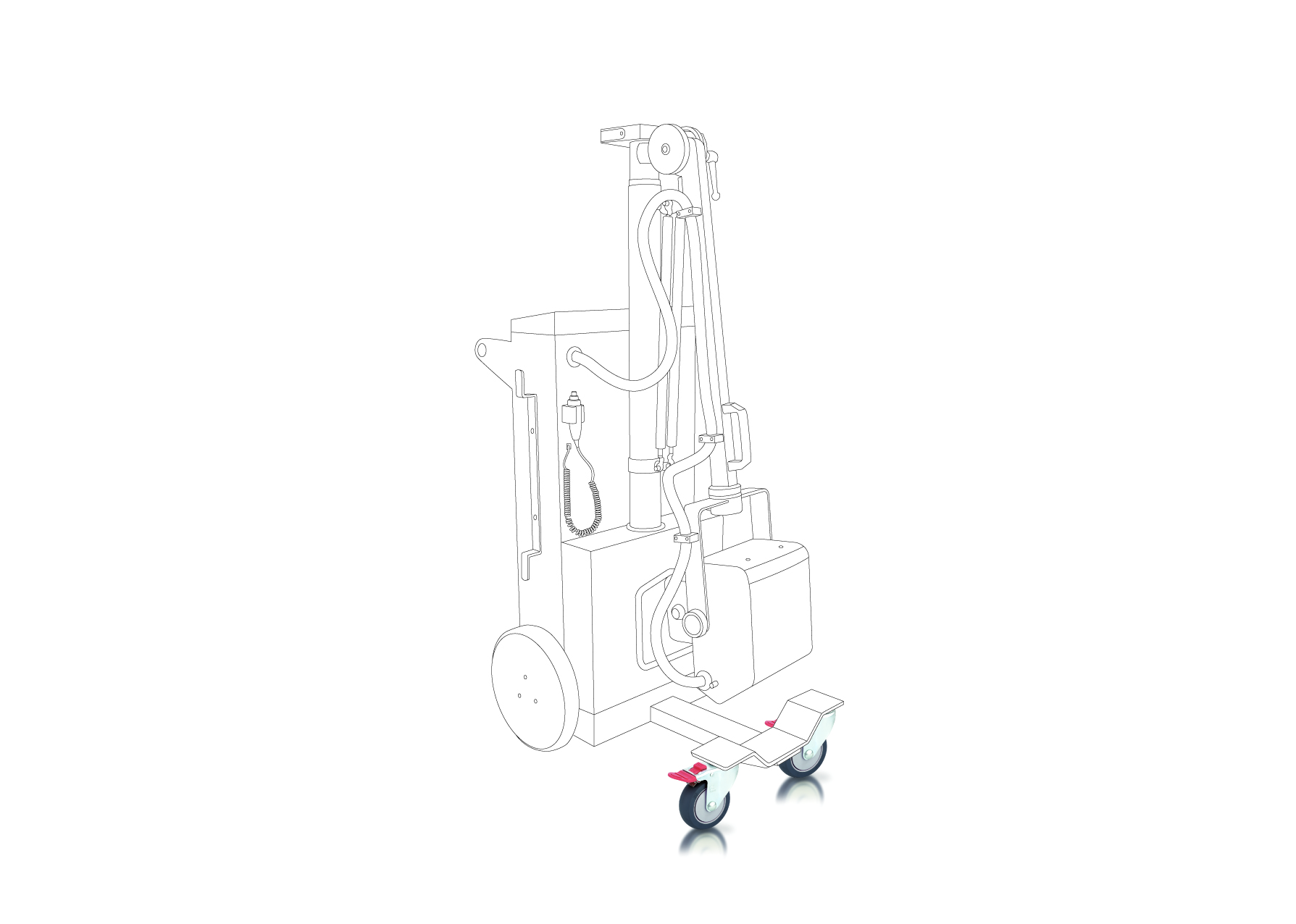

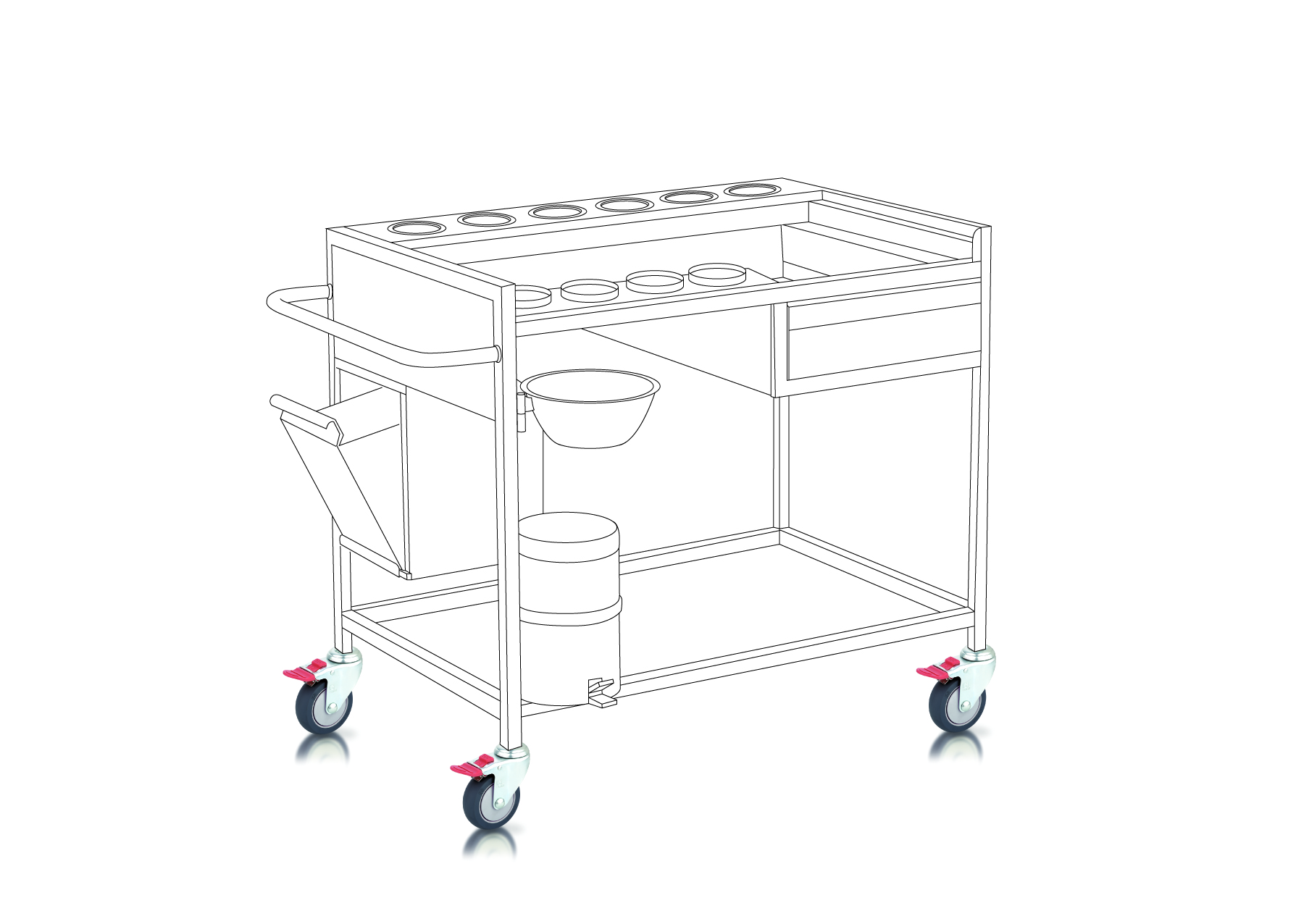

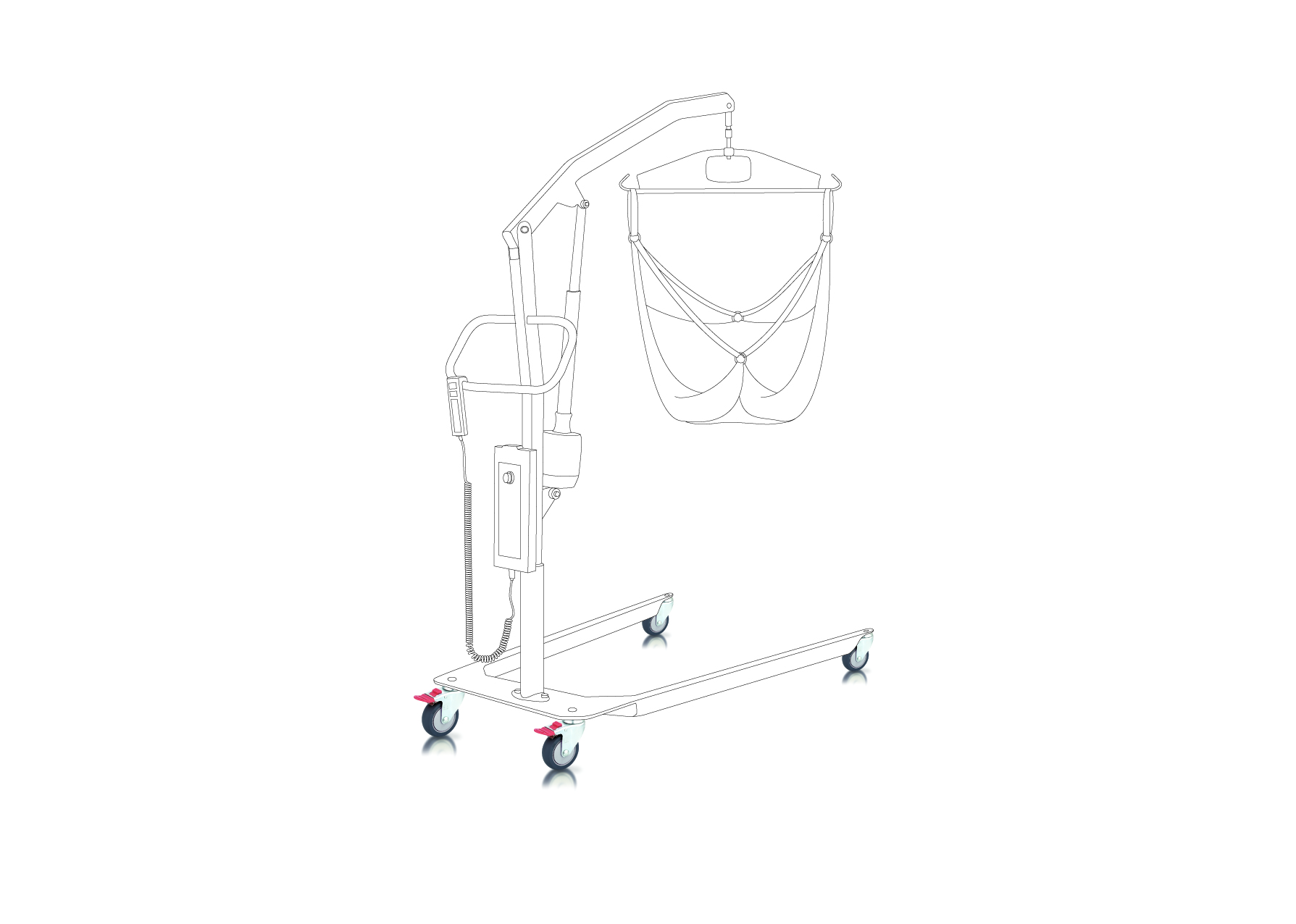

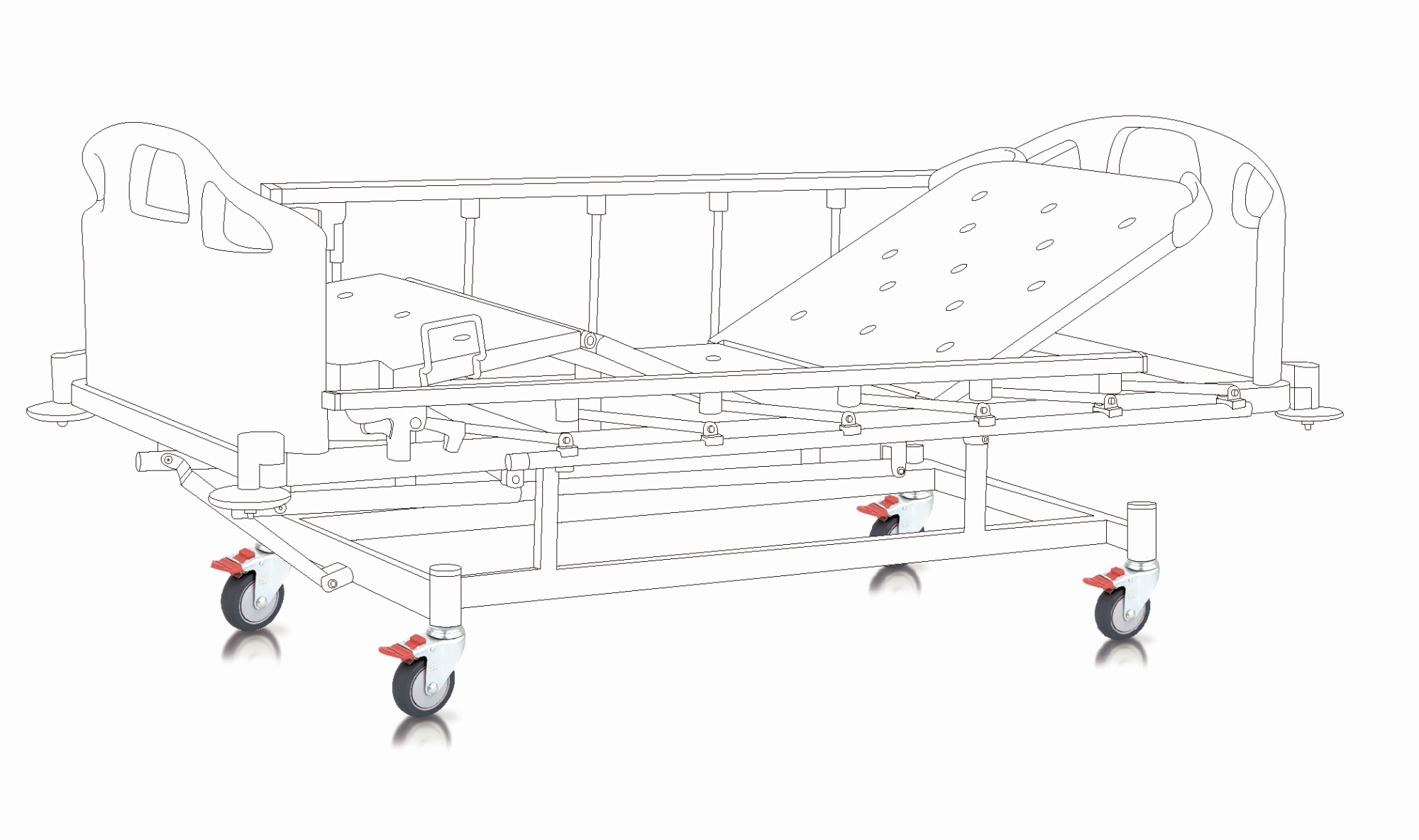

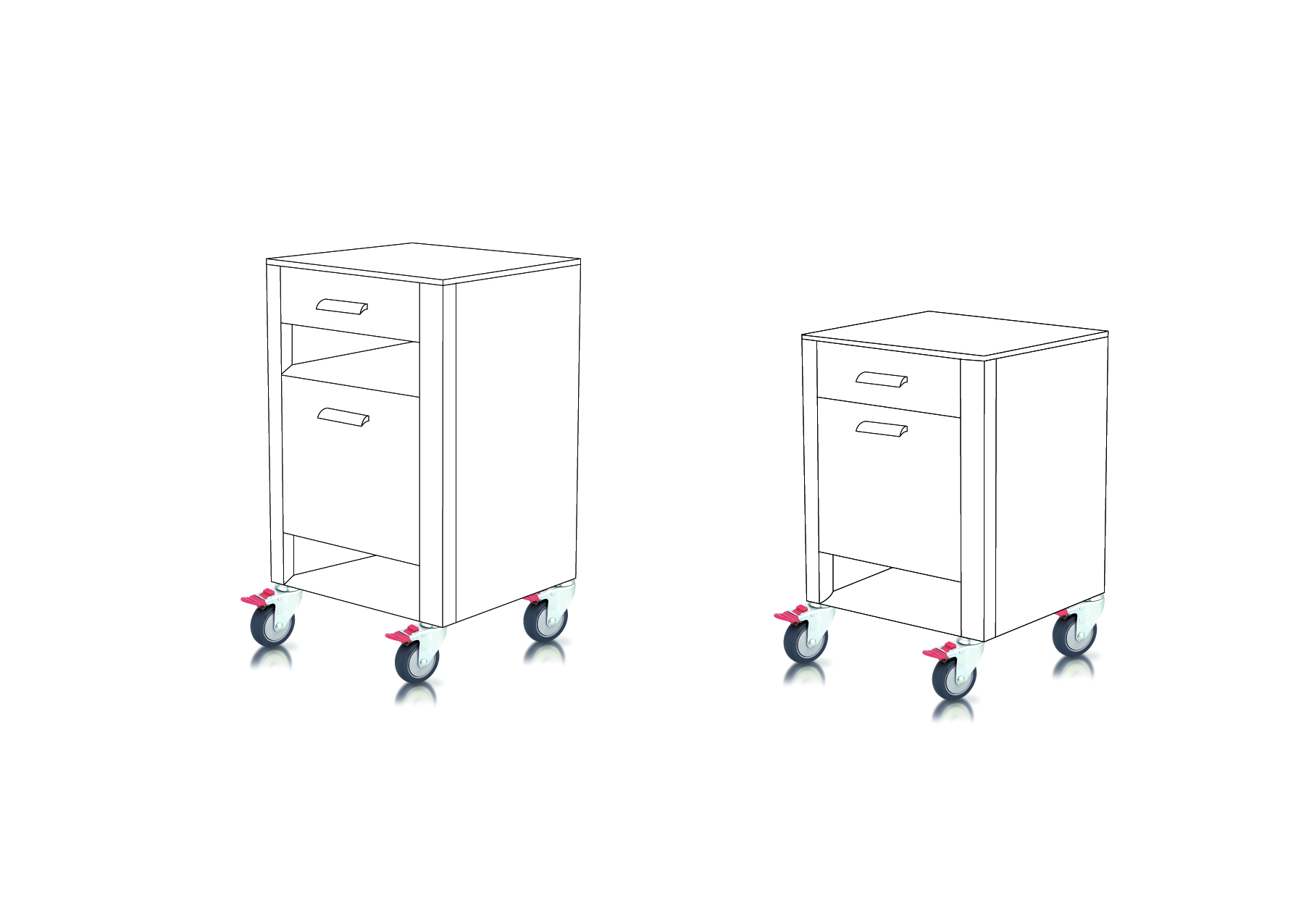

Application
