Medical H395-3A
Patient friendly for getting in and out of bed
More
Effortless, stable, and noiseless movement
More
Reduce 15-20% moving force for delivery man
More
點此瀏覽產品資訊

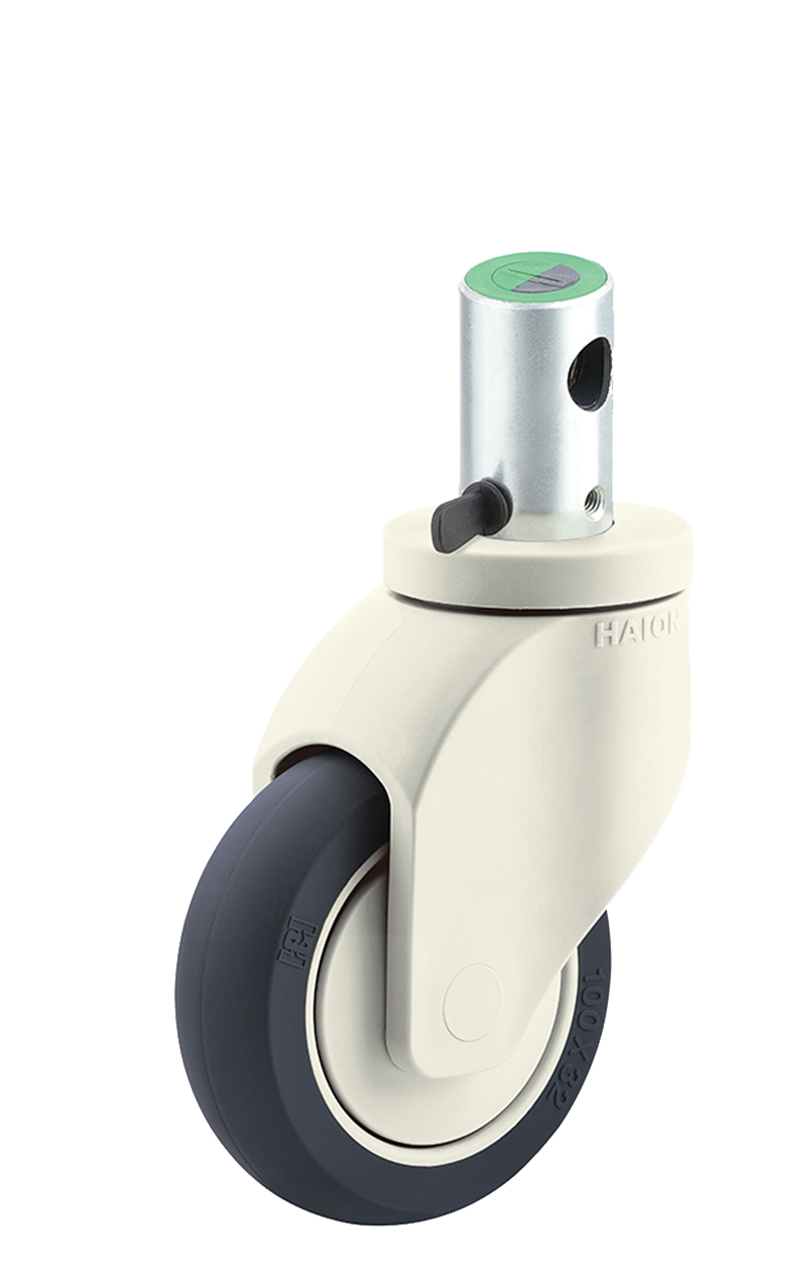

Home | Medical caster | Single wheel central locking caster | H395-3A100TPB(3FN)
Wheel size
-
100 mm( 4 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)5000+
-
Dynamic load
(kg/pc)90
-
Static load
(kg/pc)180
Specification Sheet
Compliance
Compliance |
EN12530 |
Specification
Fitting |
32x50 mm |
Total height |
140 mm |
Offset |
38.5 mm |
Dynamic load |
90 kg/pc |
Static load |
180 kg/pc |
Wheel
Wheel diameter |
100 mm |
Wheel width |
32 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Total lock + Direction lock |
Additional option
Electric conductive |
Available |
Antistatic |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
RAL 9002 |
| RAL 7035 | |
| RAL 7015 |

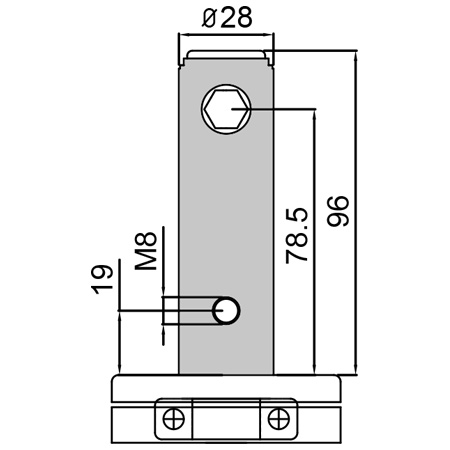

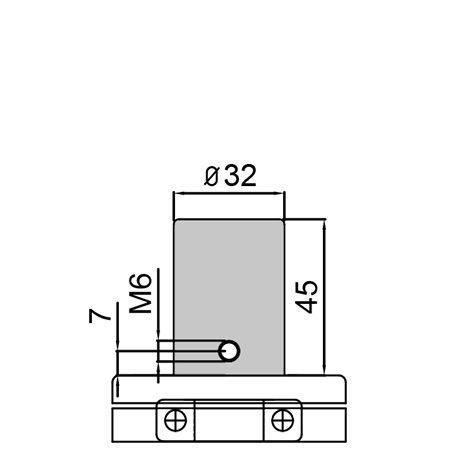

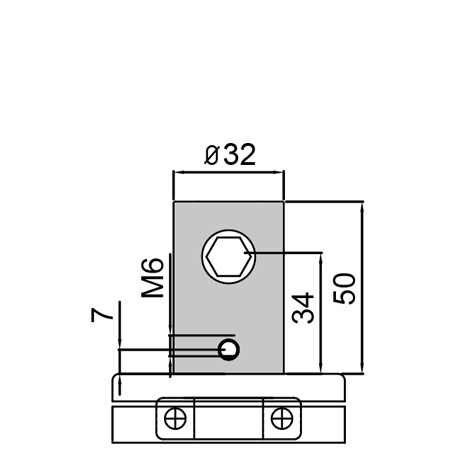

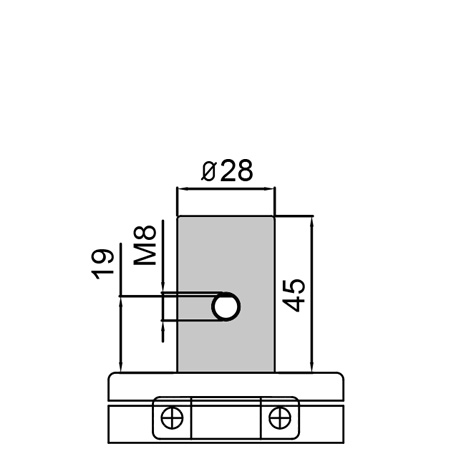

Fitting type

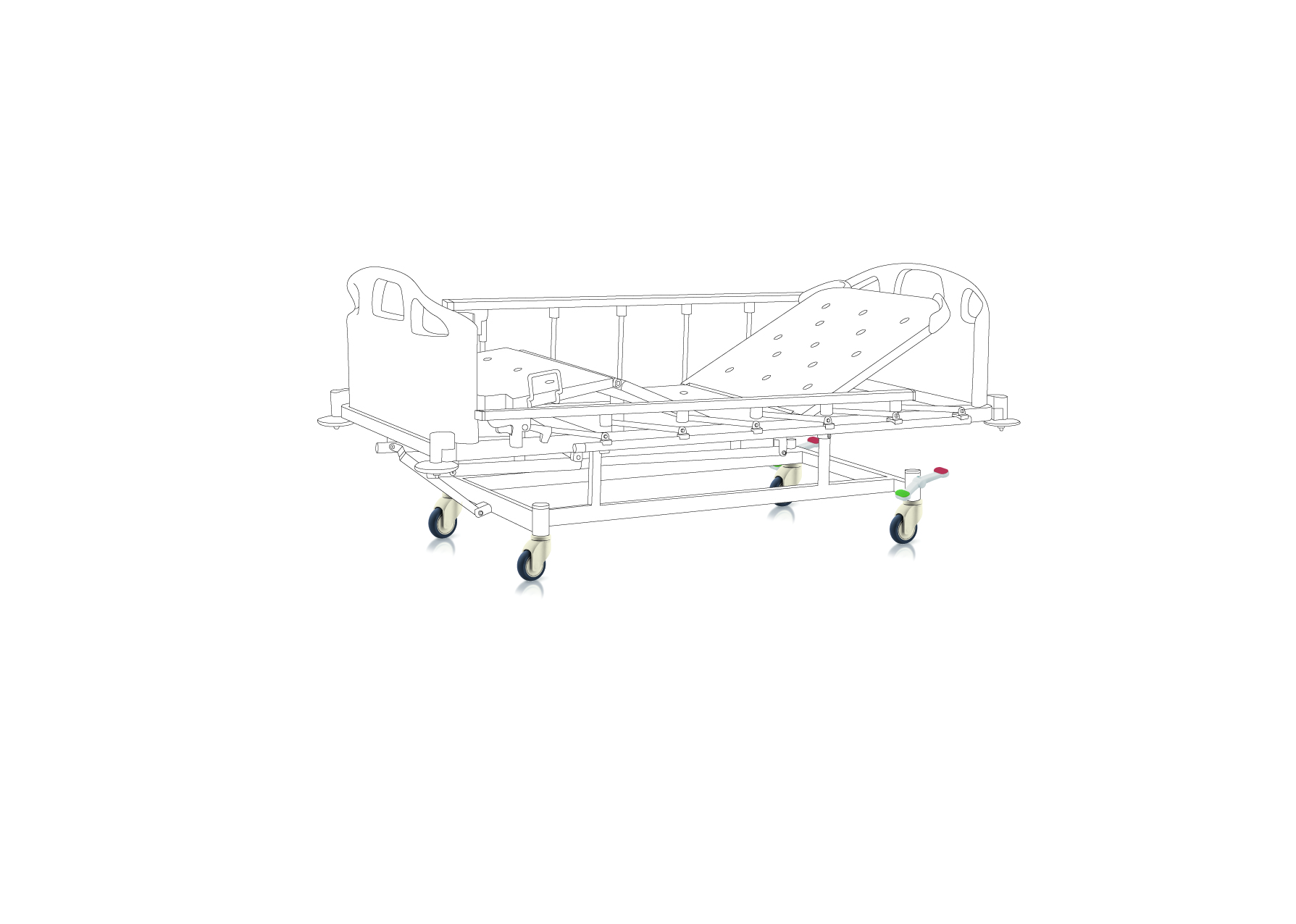

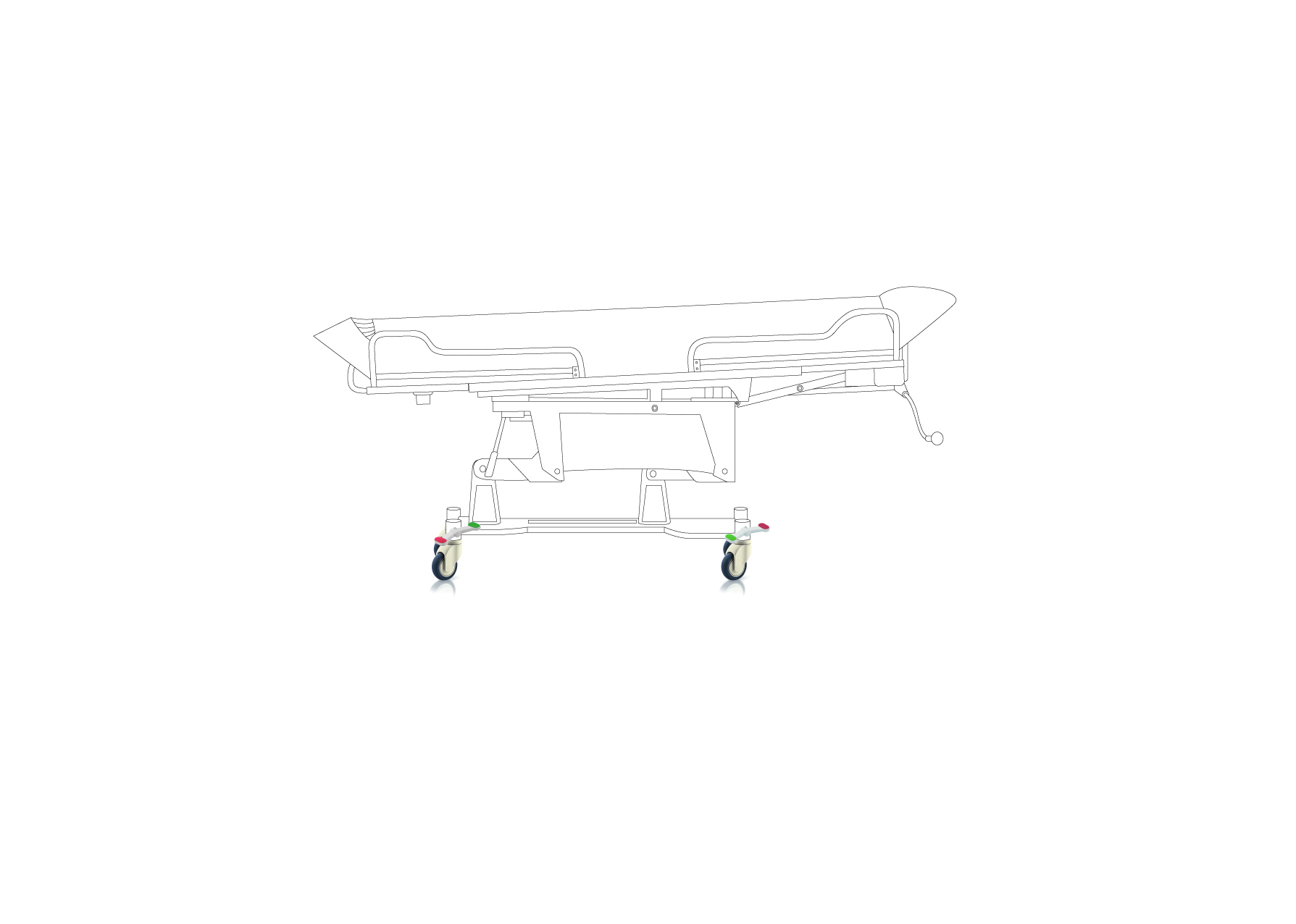

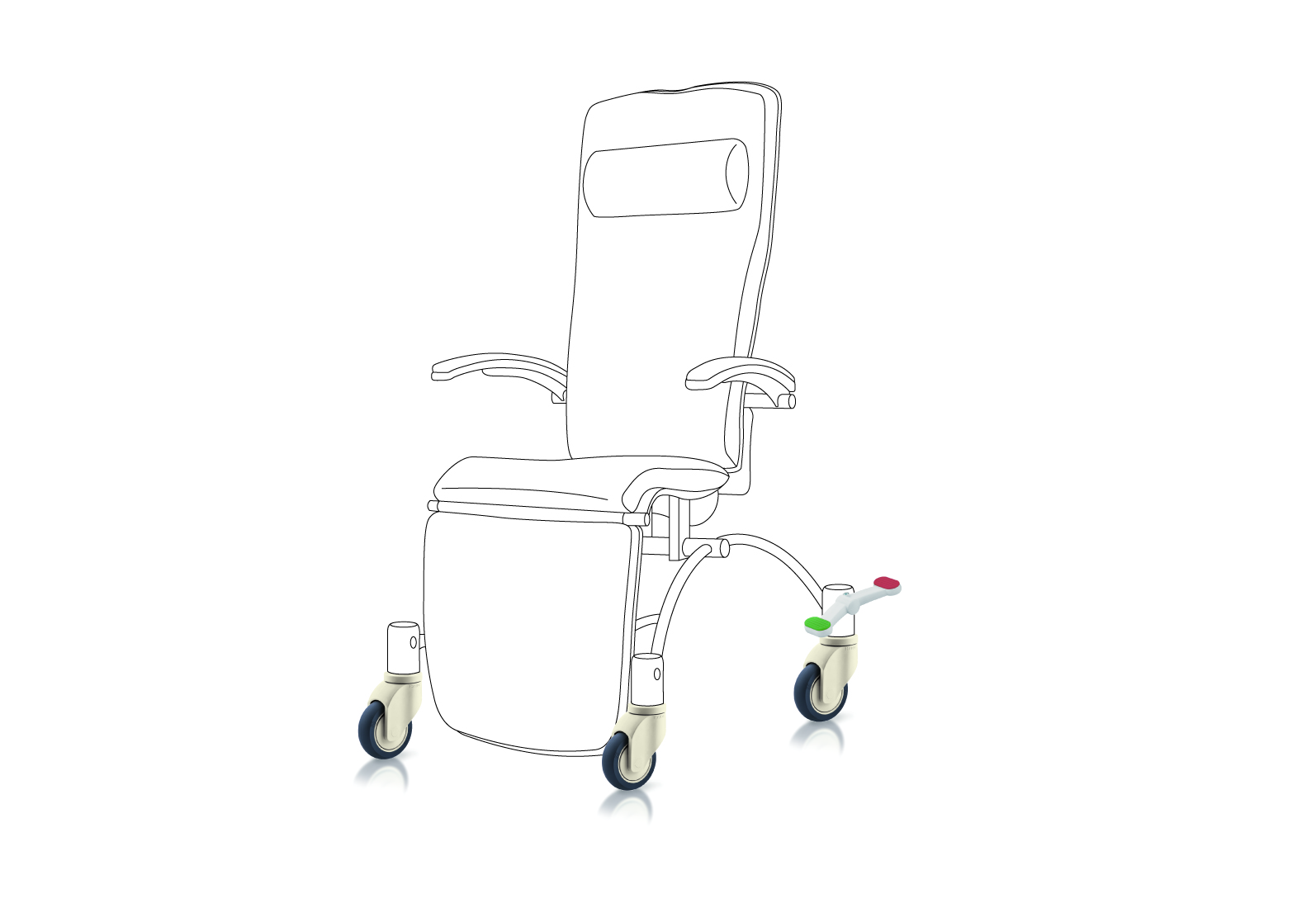

Application
