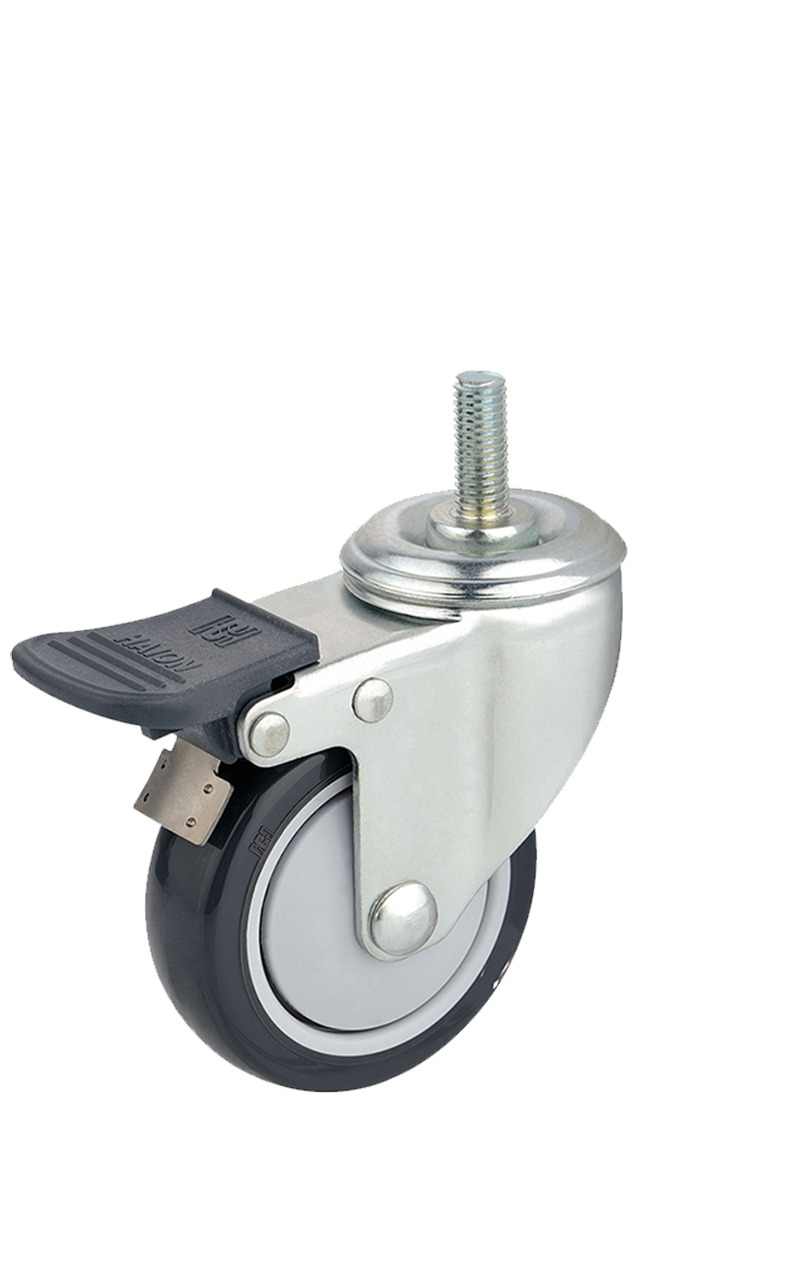

Medical Caster H25-T
For light duty industrial products
點此瀏覽產品資訊
Home | Medical caster | Stretcher & institutional caster | H25-3T125TPB-N
Wheel size
-
75 mm( 3 inch)
TPR (Thermoplastic rubber)
-
100 mm( 4 inch)
TPR (Thermoplastic rubber)
-
125 mm( 5 inch)
TPR (Thermoplastic rubber)
Capability Data
-
Braking Life
(cycles)5000+
-
Dynamic load
(kg/pc)60
-
Static load
(kg/pc)120
Specification Sheet
Compliance
Compliance |
EN12530 |
Specification

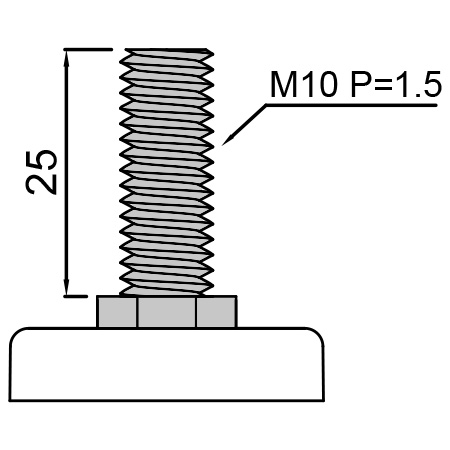

Fitting |
M10x25 mm |
Total height |
150 mm |
Offset |
30 mm |
Dynamic load |
60 kg/pc |
Static load |
120 kg/pc |
Wheel
Wheel diameter |
125 mm |
Wheel width |
25 mm |
Wheel Material |
TPR (Thermoplastic rubber) |
Brake function
Brake function |
Swivel+ Total lock |
Additional option
Antistatic |
Available |
Stainless steel |
Available |
PAS (Power Assist System) |
Available |
Color
|
Color |
Zinc |

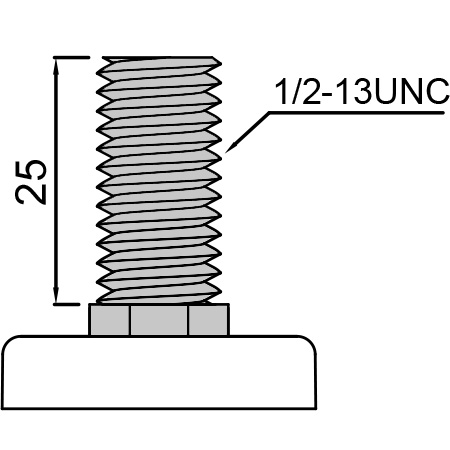

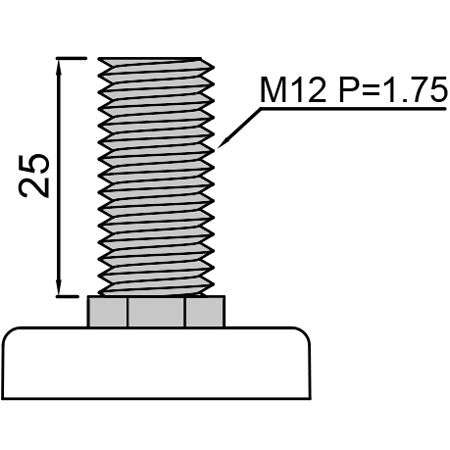

Fitting type
Application
